01Under-sink design
Keep your worktop clear.
The purifier sits inside the cabinet, leaving only its dedicated faucet on the worktop. Installation needs a water inlet, RO drain, power point and room to change both cartridges.
Water purifiers

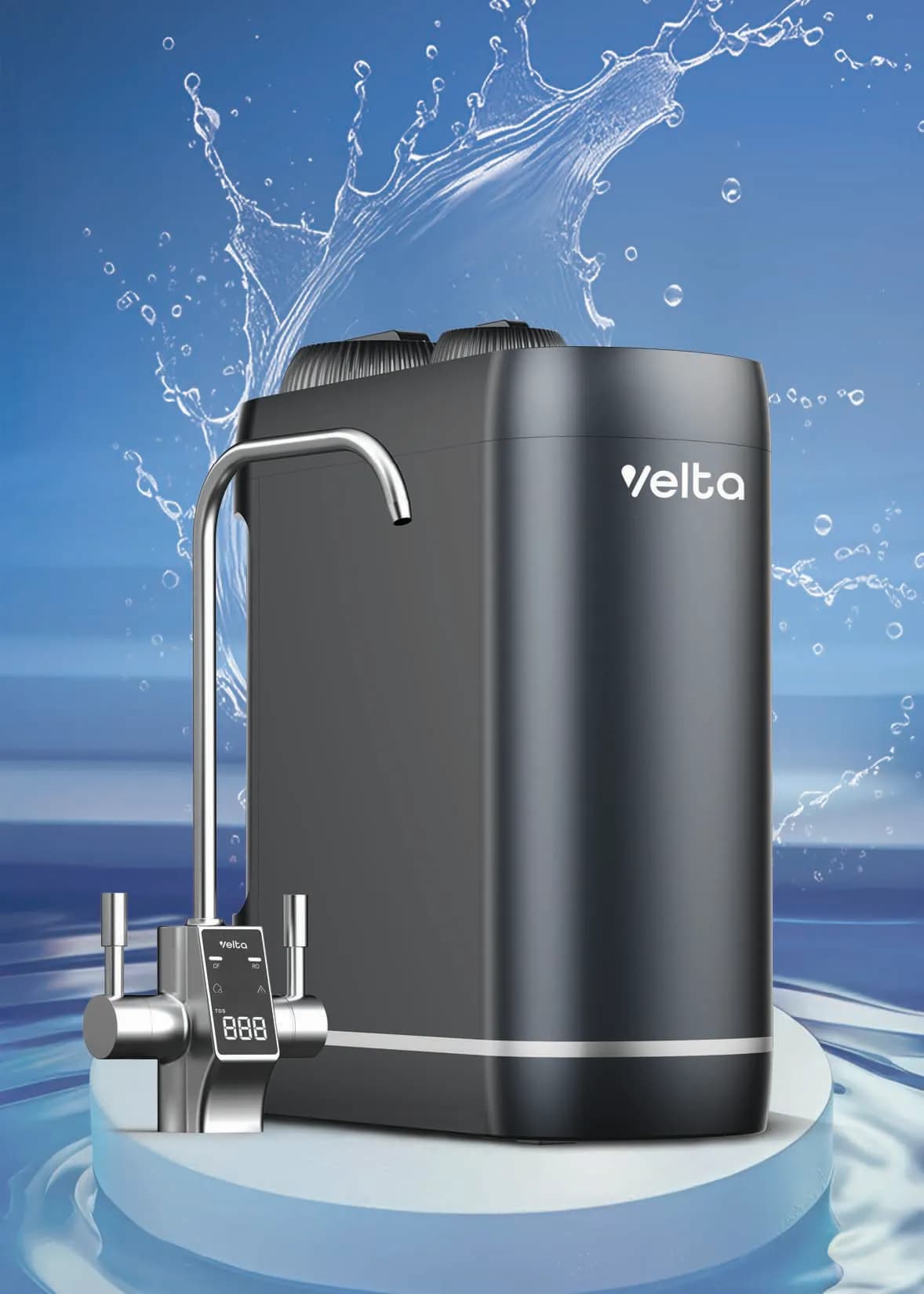

Tankless under-sink RO purifier · HydroView+
HydroView+ under-sink water purifier.
Ambient RO drinking water from a dedicated faucet, with the purifier hidden below the sink.
Price
SGD 2,188.00
Flow
2.1 L/min
Storage tank
None
Warranty
24 months
Features & benefits
RO drinking water from an under-sink purifier.
HydroView+ hides the purifier below the sink, gives RO drinking water its own faucet and keeps a separate filtered stream for rinsing.
01
02RO drinking water
RO drinking water from its own tap.
Particle filtration, carbon, reverse osmosis and a final carbon stage work together below the sink before the water reaches the faucet.
03Dual-outlet faucet
Drinking water and rinse water, each with its own lever.
One lever supplies RO drinking water; the other supplies composite-filtered water for rinsing fruit and vegetables.
Refill at the sink
Fill glasses and reusable bottles at the dedicated faucet.
The dedicated HydroView+ faucet fills glasses, carafes and reusable bottles while cutting down on bottled drinking water at home.
01
A dedicated drinking-water tap
RO drinking water has its own outlet, separate from the composite-filtered rinse-water lever.
02
Refill where you use it
Keep a reusable bottle or carafe ready and fill it directly at the sink.
03
Fewer bottles to store
Reduce the need to bring home and make room for repeat cases of bottled drinking water.
TDS and filter status for HydroView+
See the difference at the faucet.
HydroView+ shows inlet and outlet TDS together at the faucet, with filter status and rinse controls on the same display.
01
RO treatment
RO drinking water, filtered below the sink.
Particle and carbon stages improve the water before the RO membrane and final carbon stage.
02
Inlet and outlet TDS
Compare source and filtered water.
The display shows the source and RO-output readings together where you pour the water.
03
Filter life
Know when each filter is due.
HydroView+ tracks the CF and RO cartridges separately and keeps their status visible at the faucet.
Official product film & gallery
See HydroView+ in motion.
Watch the under-sink purifier and display faucet at work, then inspect the appliance, faucet, filters and controls.
Official Velta film
HydroView+ and Hhuhu product film
The official Velta film shows HydroView+ supplying low-TDS RO water through its display faucet and pairing with a compatible Hhuhu appliance.

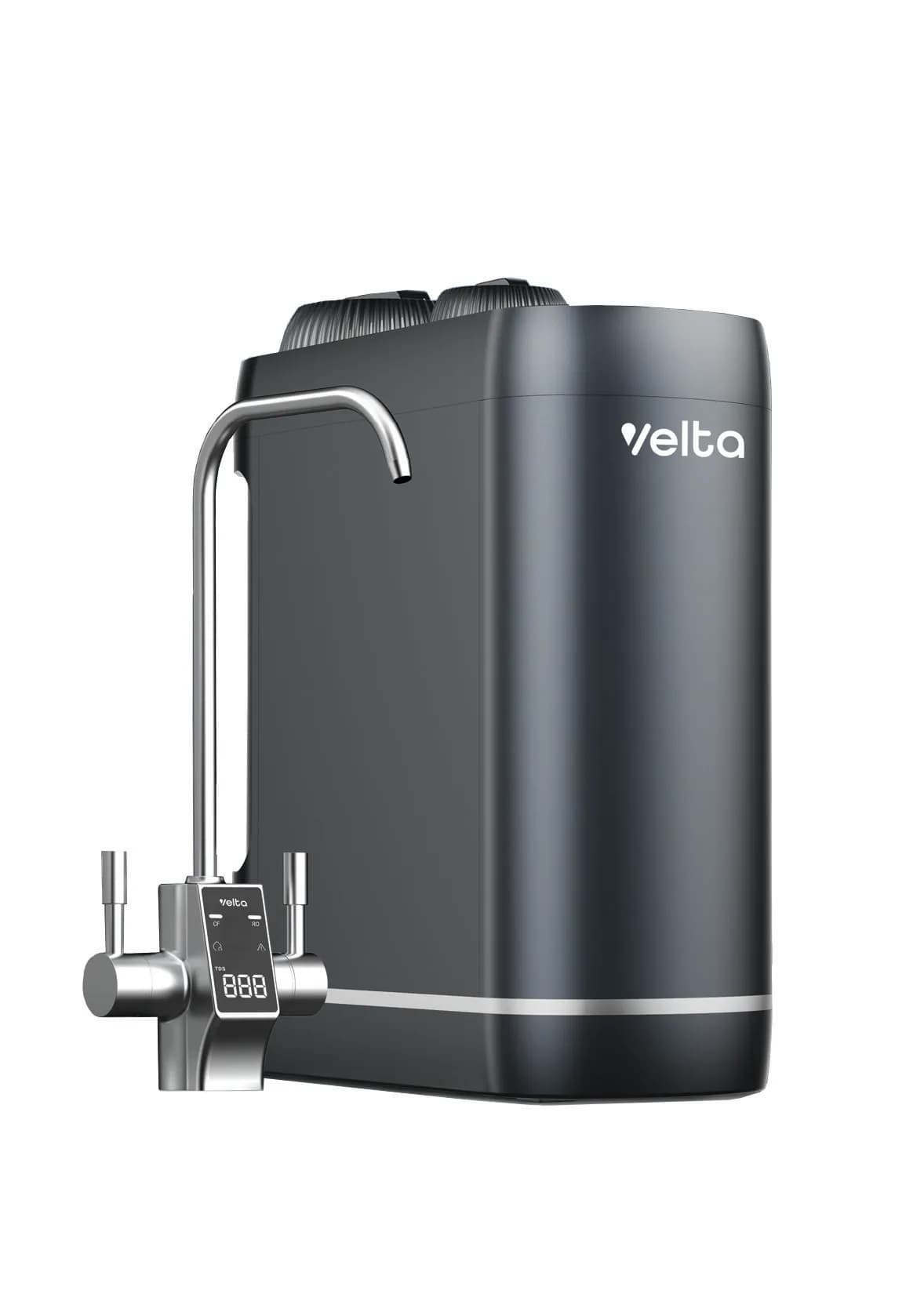

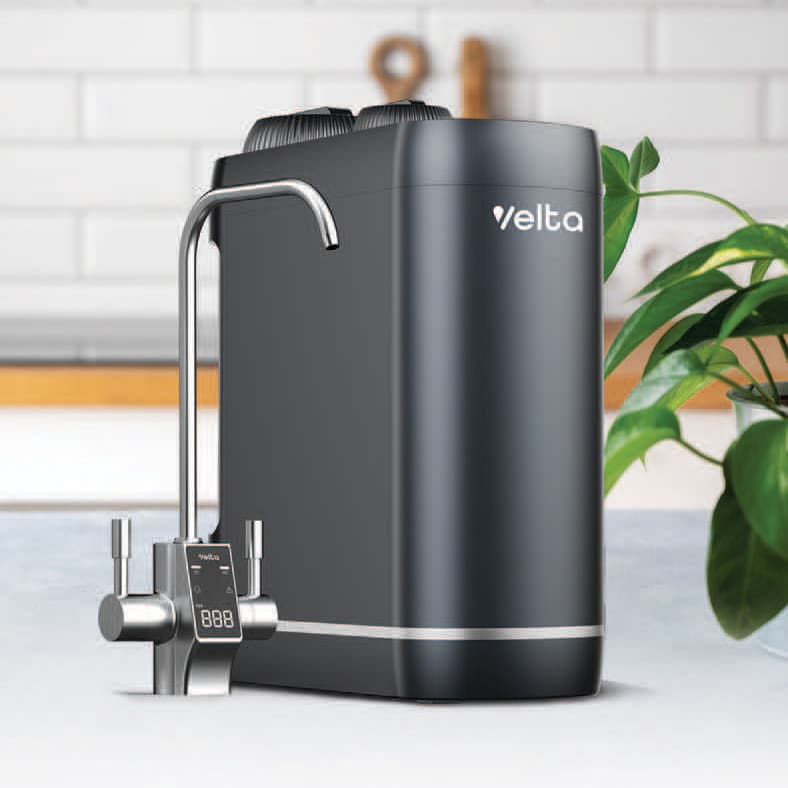

HydroView+ product views

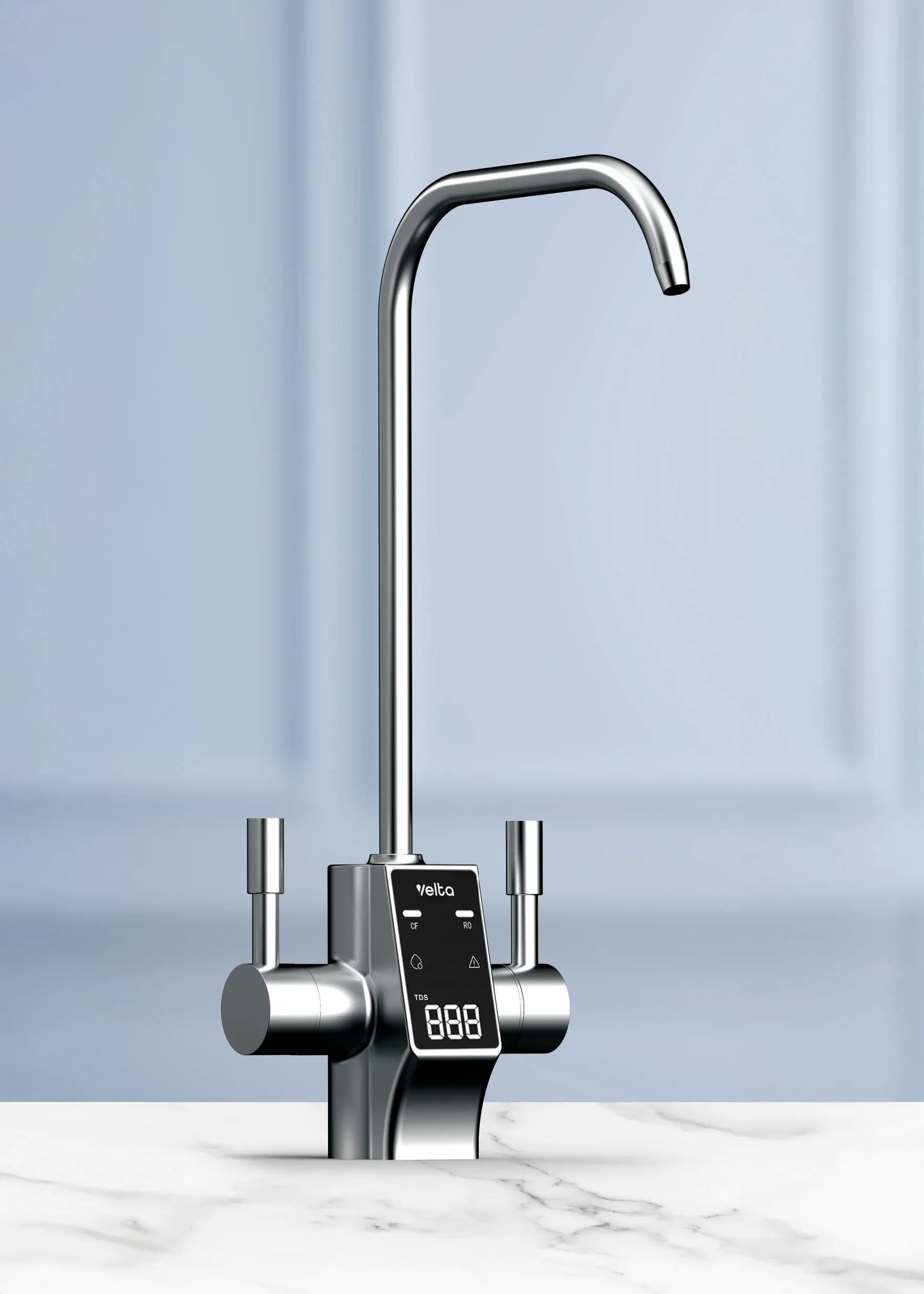

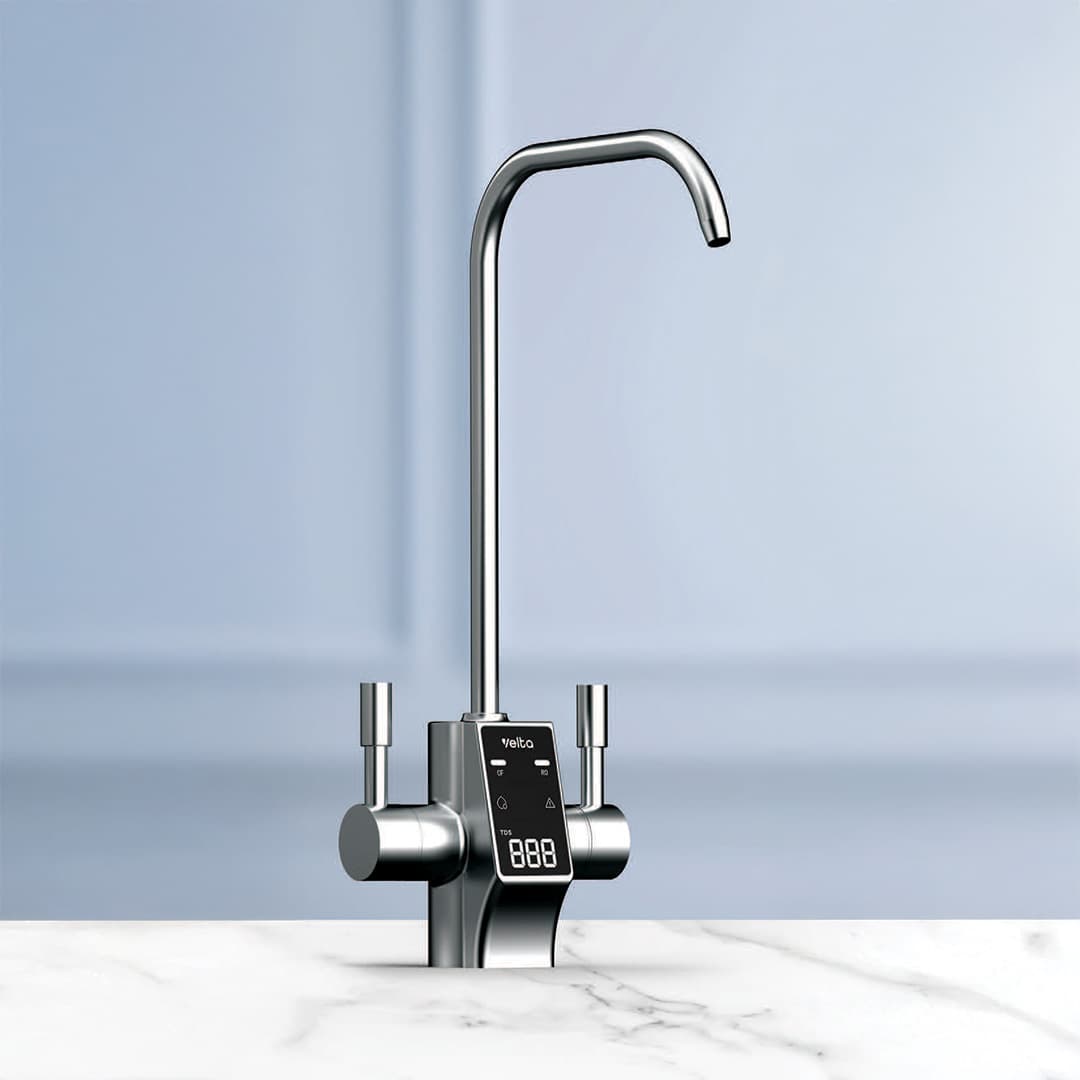

Dual-outlet faucet
One faucet. Two kinds of filtered water.
The right lever supplies RO drinking water and the left supplies filtered rinse water.
01
Right-side lever
RO drinking water
The manual identifies this as purified water for drinking.
02
Left-side lever
Composite-filtered rinse water
The manual positions this output for washing vegetables and fruit.
Installation
Plan the cabinet and faucet.
The installation needs room for the purifier, both cartridges, existing services and future maintenance, together with a suitable faucet, inlet, reject-water drain and power arrangement.
01
Cabinet
The body is 165 × 381 × 435 mm. The usable cabinet space also accounts for the trap, valves, bins and stored items, with vertical and side access for cartridge removal.
02
Water + drain
Connect to a suitable cold-water line and route the RO reject-water stream correctly to the drain, with isolation and tubing kept serviceable.
03
Faucet + power
Allow for the dedicated faucet opening and a protected power arrangement for the 90 W appliance.
Send a clear cabinet photo, complete measurements and the proposed faucet location before installation is scheduled.
Tankless direct flow
No purified-water storage tank. 2.1 L/min flow.
The 800 GPD direct-flow system filters water on demand, keeping the cabinet free from a separate purified-water storage tank.
01
Cold-water inlet
Source range: 1–4 bar and 5–45°C.
02
CF + RO paths
The two-cartridge body filters on demand without a pressure tank.
03
Faucet + drain
Selected water goes to the faucet; the separated stream goes to drain.
Filtration
Five filtration layers.
Two particle filters, carbon pre-treatment, reverse osmosis and post-carbon filtration work together before the water reaches the faucet.
01
Folding PP cotton
The first particle pre-filtration layer.
02
Sintered carbon
Activated carbon before the RO membrane.
03
PP cotton
A further particle layer before the membrane.
04
RO membrane
The manufacturer specifies a nominal 0.0001 µm membrane.
05
Post-bacteriostatic carbon
The final carbon stage before drinking.
HydroView+ provides RO drinking water and a compatible low-TDS source for other appliances, while keeping the worktop clear.

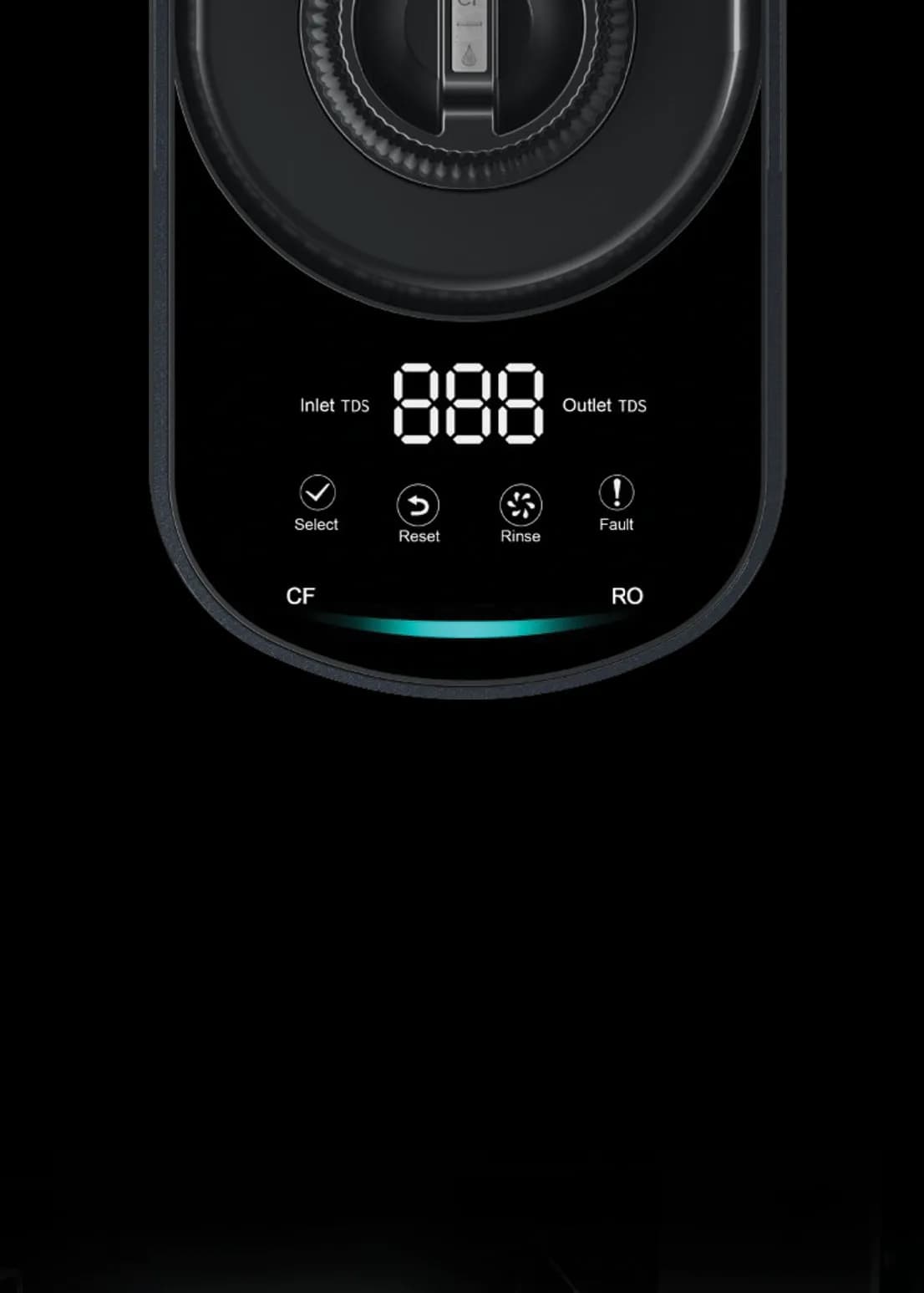

Display & diagnostics
Device readings, filter status and alerts.
HydroView+ keeps TDS readings, cartridge status, rinse controls and fault alerts visible at the faucet.
01
Inlet and outlet TDS
The display compares inlet and outlet TDS readings at the faucet.
02
12-hour auto-flush
The system flushes automatically every 12 hours when unused.
03
Filter-life memory
The unit records cartridge use and status through a power interruption.
04
Automatic screen sleep
The display switches off when idle and wakes with a keypress or water use.
05
Fault alerts
Visual and audio indications flag filter expiry, extended flow and other errors listed in the manual.
06
Technician Bluetooth
Built-in Bluetooth is reserved for technician servicing and is not used as a household app.

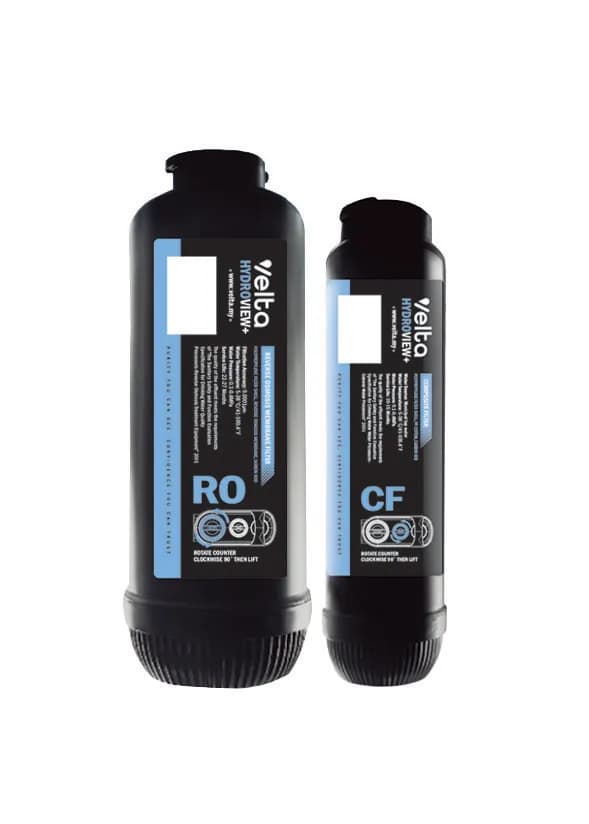

Filter replacement
Two cartridges, two replacement schedules.
Replacement is due at the appliance alert or stated capacity and time interval, whichever comes first.
CF cartridge
4,000 L / 12 months
Replace at this interval or sooner if the appliance alerts you.
RO membrane
8,000 L / 24 months
Replace at this interval or sooner if the appliance alerts you.
Device guidance
Filter-status alerts
The appliance records filter status and alerts when a cartridge reaches its replacement point.
Replacement cartridges are available through Velta Singapore. The machine carries a 24-month warranty.
Inside the cabinet and at the faucet
Inside HydroView+.
See the under-sink purifier, five filtration layers, display faucet and replaceable cartridges.
HydroView+ product animation
See the under-sink body, display faucet and water flow in motion.

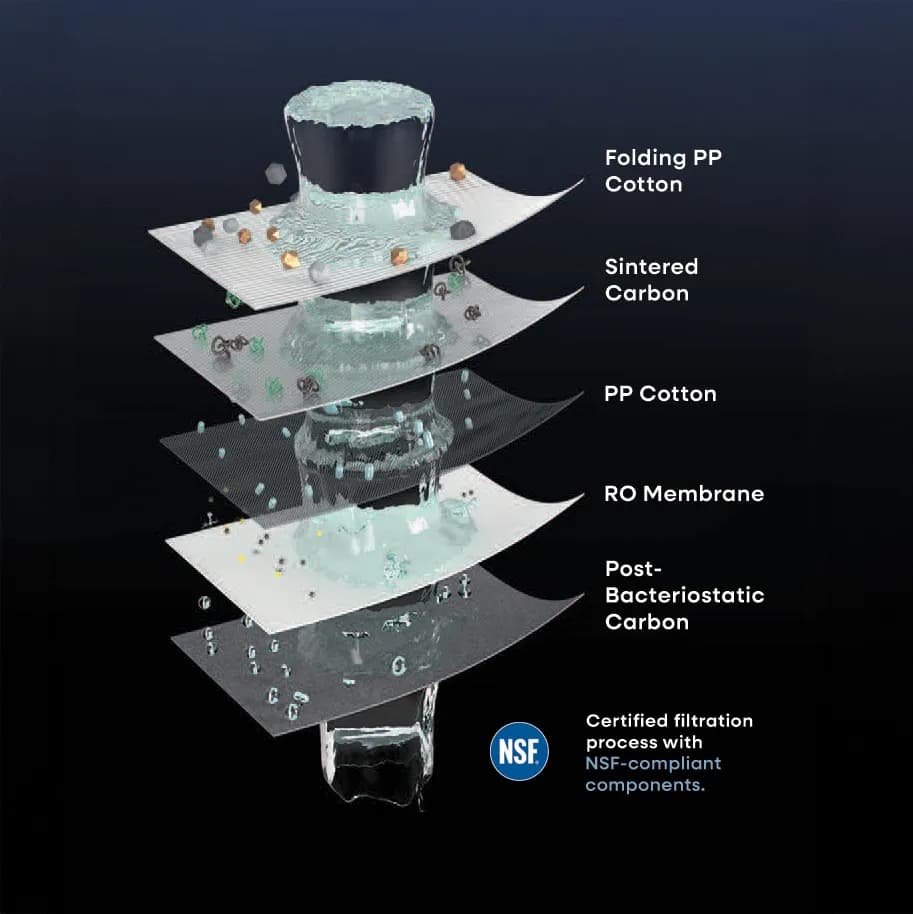

Five filtration layers
Two particle layers, sintered carbon, the RO membrane and post-carbon filtration make up its five stages.
- Folding PP cotton
- Sintered carbon
- PP cotton
- RO membrane
- Post-bacteriostatic carbon
Water quality and filter life at the faucet
The display shows inlet and outlet TDS readings, filter status, rinse and reset controls, and fault alerts.

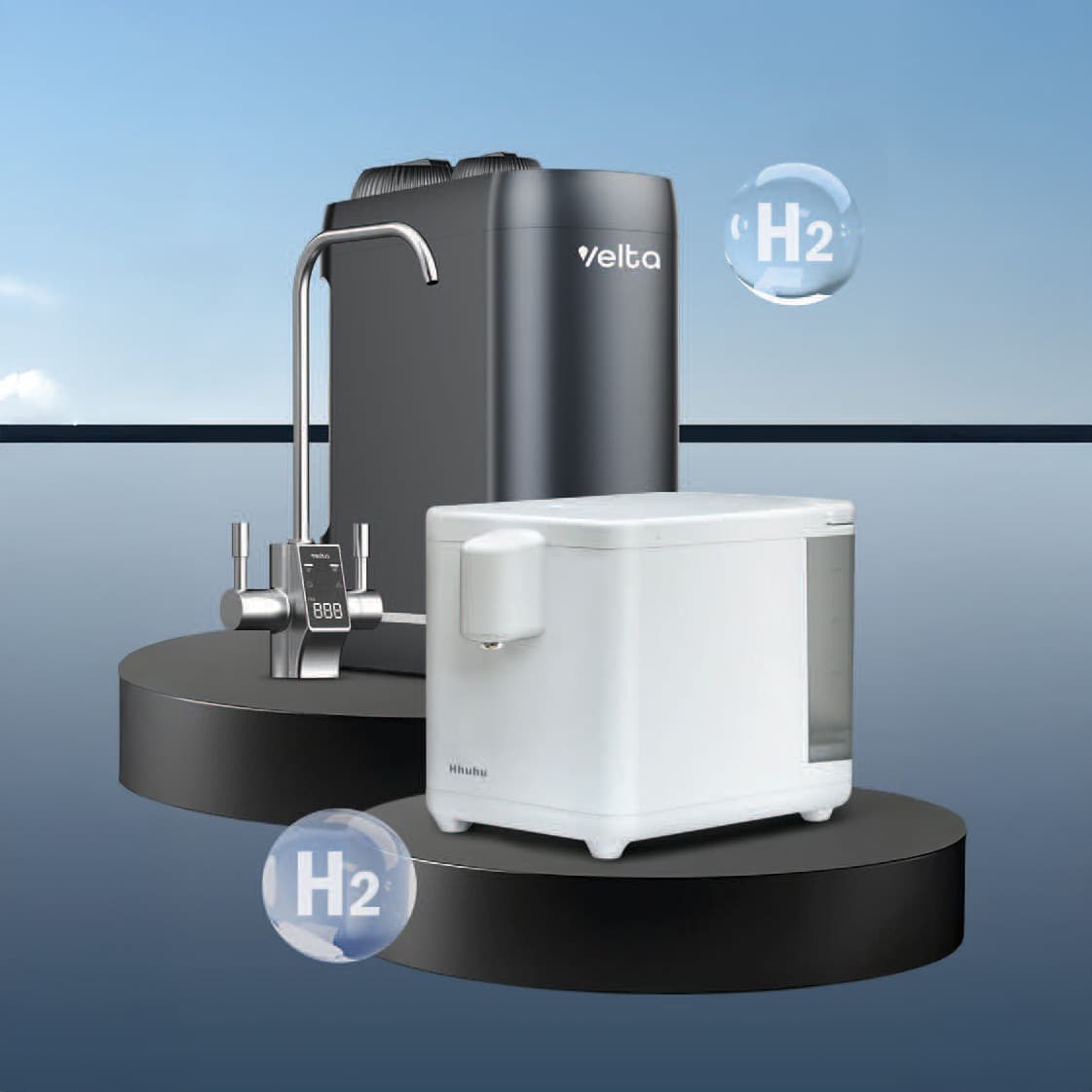

RO source water for Hhuhu
HydroView+ can supply the low-TDS RO water required by a separate Hhuhu machine.
Specifications
HydroView+ specifications.
See flow, capacity, filtration, dimensions, power and installation requirements.
- Water outputs
- RO drinking water · composite-filtered rinse water
- Temperature
- Ambient only
- Flow
- 2.1 L/min
- Capacity
- 800 GPD
- Storage / pressure tank
- None
- Filter stages
- PP · carbon · PP · RO · post-carbon
- Nominal RO scale
- 0.0001 µm · manufacturer specification
- Source connection
- Cold-water line
- Source pressure
- 1–4 bar
- Source temperature
- 5–45°C
- Power usage
- 90 W
- Voltage
- 110 / 220 V · Singapore setup arranged at installation
- Dimensions (W × D × H)
- 165 × 381 × 435 mm
- Product weight
- 7.8 kg
- Faucet
- Dedicated dual-outlet display faucet
- Finish
- Graphite body · chrome faucet
- Filter replacement
- CF 4,000 L / 12 months · RO 8,000 L / 24 months
- Warranty
- 24 months
Compare alternatives
Clear counter, temperature control or flexible placement?
01
HydroView+
Choose it for an ambient filtered-water faucet and clear worktop.
The purifier stays below the sink, but the permanent cabinet, faucet, power and drain work must fit.
02
HydroForm+
Choose it when hot and cold dispensing matters more than a clear counter.
A 180 mm-wide connected countertop purifier with hot, cold and ambient outputs.
03
HydroSpark+
Choose it for sparkling plus temperature dispensing or a refillable mode.
Adds sparkling, hot and cold water, but needs 508 mm of counter depth.
Frequently asked questions
HydroView+ FAQs.
Does HydroView+ provide hot or cold water?
No. HydroView+ provides ambient water. HydroForm+ adds hot and cold water, while HydroSpark+ also adds sparkling water.
What comes from each faucet lever?
The right-side lever dispenses RO drinking water. The left-side lever provides composite-filtered water for rinsing vegetables and fruit, giving each side of the faucet a clear role.
Will HydroView+ fit under my sink?
The body is 165 mm wide, 381 mm deep and 435 mm high, but a dimension check alone is not enough. The cabinet must also accommodate the trap, valves, inlet and drain tubing, power, isolation and vertical clearance to remove both cartridges. Share clear photos and measurements before purchase.
Does it need a new faucet hole?
HydroView+ uses its own dual-outlet faucet. Whether an existing opening can be reused depends on your mixer, sink and worktop. We check the faucet position and any drilling needed before installation.
What does tankless mean here?
The unit filters on demand without a pressure or purified-water storage tank. It uses a connected inlet, reject-water drain and power supply below the sink, with a rated flow of 2.1 L/min.
How often are the HydroView+ filters replaced?
Replace when prompted by the appliance, or at the published reference: CF at 4,000 L / 12 months and RO at 8,000 L / 24 months, whichever comes first.
What do the HydroView+ TDS readings show?
The faucet display shows inlet and outlet TDS readings together, along with separate CF and RO filter status.
Why use RO when Singapore tap water is safe?
HydroView+ provides ambient RO drinking water from its own faucet while keeping the purifier below the sink.
What warranty applies in Singapore?
HydroView+ carries a 24-month warranty through Velta Singapore.
